Aging Cabinet Electronic Load Module DC Charger Power Programmable LED Tester

  • 1
  • 2

Brand Name : CPET

Model Number : 8102

Place of Origin : China

MOQ : 10sets

Price : 150dollars/set

Payment Terms : D/A, T/T

Supply Ability : 1000sets/month

Delivery Time : 5-8 work days

Packaging Details : Wooden case packing

Input voltage range : 0~500V

Input current range : 0.1~10A

Channel number : 4CH

Single channel power : 100W

Pull mode : CC/CV/LED/CR/CP

Votage comtrol precision : ±1%+0.5%FS

Contact Now

Aging Cabinet Electronic Load Module DC Charger Power Programmable LED Tester

Scope of application

Aging Cabinet Electronic Load Module DC Charger Power Programmable LED Tester

Isolated & non-isolated LED driver TV power, LED backlight driver
Power charger, adapter DC-DC converter
Power with multiple voltage output and positive & negative voltage output

Outstanding functions

Aging Cabinet Electronic Load Module DC Charger Power Programmable LED Tester

1. Be of five kinds of load modes, such as CC, CV, CR, CP and LED.
2. Support simulation of LED steady state operating point, with programmable internal resistance coefficient of LED.
3. Support parallel connection of channels under any load modes and meet the requirements for product power extension.
4. Support monitoring of peak value and valley value of voltage and current (ripple frequency below 10 KHz).
5. Support the maximum dynamic load of 5K and programmable rising and falling slope of current.
6. Programmable current up and down the slope.
7. Support settings of Von/Von latch.
8. Support output of PWM dimming signals.
9. 2 Road extension logic signal output.
10. Support anomaly detection of voltage and current output above 100 us.
11. Apply 6½ regulator to calibrate automatically.
12. Meet the requirements for burn-in test of power from low voltage to high voltage and from low current to large current.
13. Isolate through multi-channels, and support burn-in test for isolated & non-isolated power and multi-channel output power.
14. Support output for PASS/FAIL detecting signals of tested module 15. Be of protection functions for over-temperature, over-current and over-power.

Performance parameters

Aging Cabinet Electronic Load Module DC Charger Power Programmable LED Tester

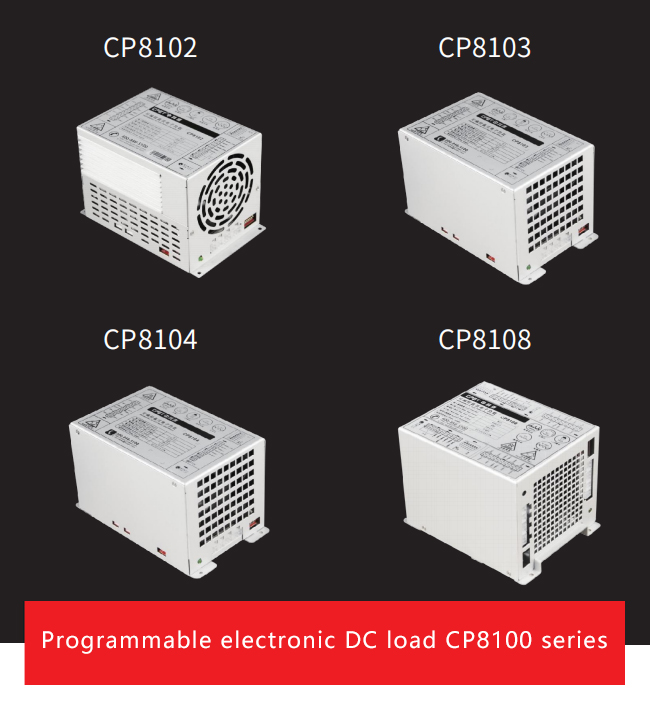

Model CP-8102 CP-8103 CP-8104 CP-8108
Input voltage range 1-500V 1-500V 1-500V 1-500V
Input current range 0.05-10A 0.05-10A 0.05-10A 0.05-5A
Single channel power 100W 125W 150W 40W
Pull mode CC/CV/LED/CR/CP
Votage comtrol precision ±1%+0.5%FS
Voltage accuoacy ±1%+0.5%FS
Current readback accuracy ±1%+0.5%FS
Communication mode RS-485
Channel isolation Y N

Model CP-8118 CP-8119 CP-8130
Input voltage range 2-100V 2-100V 1-200V
Input current range 0.2-5A 0.2-6A 0.5-1A
Single channel power 50W 65W 100W
Pull mode CC/CV CC/CV LED
Votage comtrol precision ±1%+0.5%FS
Voltage accuoacy ±1%+0.5%FS
Current readback accuracy ±1%+0.5%FS
Communication mode RS-485
Channel isolation N N Y
